Q: WHAT IF A CLEVITE JOINT MET A FLEX JOINT IN A BAR...
A: You'd have the key to the Metalcloak Control Arms, the Duroflex™ Joint (Patent Pending) |
 |
Metalcloak has taken the best features of the most widely used control arm joints and combine those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34˚), Self-Centering, Rebuildable Joint with an OEM quality ride.
|
| OEM Style Clevite Joint |
Typical Flex Joint |
Metalcloak Duroflex Joint |
- High Vibration Dampening
- Self-Centering
- Fused at Center Bushing
(No Bearing Surface Wear)
|
- High Transverse Flex
- High Rotational Flex
- Rebuildable
|
- High Vibration Dampening
- Self-Centering
- Fused Center Bushing
(No Bearing Surface Wear)
- High Transverse Flex
- High Rotational Flex
- Rebuildable
|
|
THE DUROFLEX JOINT PROVIDES THE BEST RIDE. PERIOD. |
High Vibration Dampening & Self Centering...
Made of a Proprietary Rubber Compound, the High Vibration Dampening and Self-Centering characteristics of the Duroflex Joint means you will always get...
- The best ride quality
- No binding of your control arms.
- None of the micro-wear that DESTROYS Flex Joints
|
 |
 |
High Misalignment...
By adapting the High Transverse Flex characteristics of a typical Flex Joint, the Duroflex Joint gives you...
- Over 34 degrees of Misalignment
- Over 68 degrees per Control Arm
|
Absorbs Micro-Movements...
Because the Roto-Bearing absorbs the millions of Rotational Micro-Movements found in your daily driving, you get...
- Improved Ride Quality
- None of the micro-wear that DESTROYS Flex Joints
|
 |
 |
True Bearing Surface...
The outer surface of the Roto-Bushing acts as a bearing, breaking free when called for, giving you...
- Maximum Rotation & Articulation
- No "Binding Up" of the Control Arms
|
Low Maintenance & Rebuildable...
Unlike typical Flex Joints, the Duroflex does not require replacing key parts every year like others...
But, when you do need to rebuild it, it is Metalcloak Easy!
Just pull out the Roto-Bushing, clean it up, add some new Teflon impregnated, synthetic silicone grease. Reassemble.
Done. |
 |
| |
AT METALCLOAK WE TAKE THE CARE TO BUILD IT RIGHT... |
 |
Control Arm Duroflex Joint Alignment...
At Metalcloak we take the care to build every product right.
Most manufacturers build their control arms misaligned from center. Why? It is simply costs less to do so.
By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.
It also makes them easier to install, too! |
 |
DEGREES OF ARTICULATION...
Metalcloak's Duroflex Joint provides 28˚ more articulation and flex then typical control arms! |
 |
 |
CONTROL ARM SPECIFICATIONS... |
|
|
Front Control Arms |
Rear Control Arms |
|
Castor Angle |
Lower |
Upper |
Lower |
Upper |
| Factory Control Arms |
Stock |
22 5/8" |
18 3/4" |
19 3/4" |
17 7/16" |
| MetalCloak 3.5 - 4" Lift |
5 Degrees |
23 1/16" |
18 3/4" |
20 7/16" |
18 7/16" |
|
| |
|
|
JK Wrangler Lower Front
(SKU #7001)
- CNC Formed
- 3/16" Wall DOM Steel
- 1.5" OD
- Precision Locking Nut
- Gold Zinc Plate
- Duroflex Joint at Both Ends
|
 |
 |
JK Wrangler Upper Front
(SKU #7002)
- CNC Machined
- 3/16" Wall DOM Steel
- 1.25" OD
- 3/16" Steel Clevis
- Precision Locking Nut
- Gold Zinc Plated
- Duroflex Joint
|
JK Wrangler Lower Rear
(SKU #7003)
- CNC Machined
- 3/16" Wall DOM Steel
- 1.5" OD
- Precision Locking Nut
- Gold Zinc Plate
- Duroflex Joint at Both Ends
- Lengthened 5/8" for Best Axle Position
|
|
|
JK Wrangler Upper Rear
(SKU #7004)
- CNC Formed
- 3/16" Wall DOM Steel
- 1.5" OD
- Precision Locking Nut
- Designed for Oversize Tire Clearance
- Gold Zinc Plate
- Duroflex Joint at Both Ends
- Lengthened for Best Axle Position
|
|
|

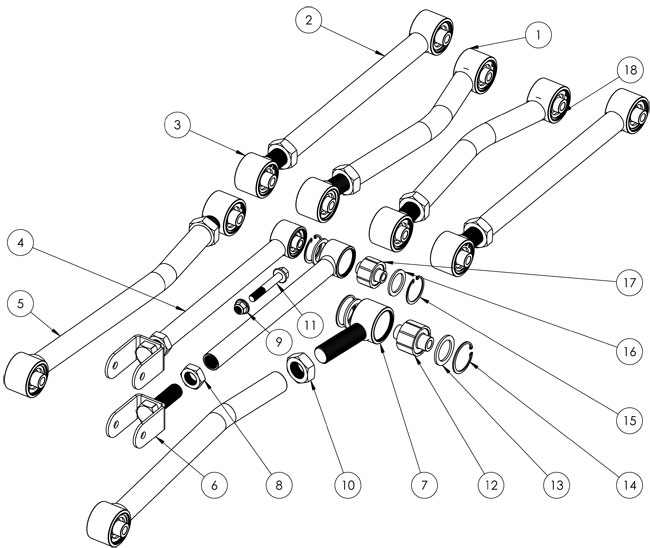

BILL OF MATERIALS...
|
 |
| ITEM |
PART NUMBER/DESCRIPTION |
QTY. |
| 1 |
WM-5005 WLDMNT, UPPER REAR ADJ CONTROL ARM JK |
2 |
| 2 |
WM-5004 WLDMNT, LOWER REAR ADJ CONTROL ARM JK |
2 |
| 3 |
WM-5011 DUROFLEX JOINT, 2.63 HOUSING 1.25 SPUD |
2 |
| 4 |
WM-5007 WLDMNT, UPPER FRONT ADJ CONTROL ARM JK |
2 |
| 5 |
WM-5006 WLDMNT, LOWER FRONT ADJ CONTROL ARM JK |
2 |
| 6 |
WM-5013 CLEVIS JOINT, UPPER FRONT CONTROL ARM JK |
2 |
| 7 |
WM-5010 DUROFLEX JOINT, 2.63 HOUSING 1.25 SPUD 7.5 ANG |
4 |
| 8 |
FA-2029 HEX JAM NUT, 1-14 GRADE 5 ZINC PLTD |
2 |
| 9 |
FA-2040 NYLOCK FLANGE NUT, 0.5-13 STL ZNC PLTD |
1 |
| 10 |
FA-2030 HEX JAM NUT, 1.25-12 GRADE 5 ZINC PLTD |
6 |
| 11 |
FA-2037 HHCS, 0.5-13 x 3.25L FLANGED ZINC PLTD GR 8 |
1 |
| 12 |
SS-1031 DUROFLEX BUSHING, 2.63D X 2.62L |
8 |
| 13 |
SS-1020 RETAINING WASHER, 10GA X 2.12 DIA |
24 |
| 14 |
SS-1050 INT RET RING, 2.13 BORE YEL ZINC |
24 |
| 15 |
SS-1051 INT RET RING, 1.87 BORE YEL ZINC |
4 |
| 16 |
SS-1023 RETAINING WASHER, 1.87 DIA |
4 |
| 17 |
SS-1032 DUROFLEX BUSHING, 2.0D X 2.0L |
2 |
| 18 |
SS-1030 DUROFLEX BUSHING, 2.63D X 2.32L |
4 |
|
INSTALLATION:
|
Installation is as easy as it can get. The precision manufacture of the joint and the control arms allows for simple bolt-in with no struggling to make the control arms fit. |
| Installation Difficulty |
Easy-Bolt On |
| Time to Install |
2-3 hours |
| Body Modification |
None |
| Tools Required |
Ratchet Set
Wrench Set |
| Instructions |
View Here... |
|
|
TESTIMONIALS & BUZZ:
Check out what Jeepers everywhere are saying about our products on The Buzz Page. |
| |
