JK Wrangler Game-Changer Suspension 4.5", Hi-Steer, Fox Edition
JK Wrangler Game-Changer Suspension 4.5", Hi-Steer, Fox Edition



The MetalCloak JK Wrangler 4.5" Game Changer Suspension System, Fox Edition, has all the components of the Game Changer, including the high-misalignment vibration-dampening Duroflex Control Arms and includes the Hi-Steer Kit too!

True Dual Rate™ Coils that provide a more comfortable ride than traditional single rate lift springs and feature better load handling stability than typical "progressive" or "multi-rate" coils.

This is not an entry-level kit; this is a complete 4.5" suspension system that gives unprecedented ride quality at a more affordable price than Game-Changer 6Pak Edition. The system includes 2 patented technologies; the Duroflex™ and Durotrak™ bushings for the best (NVH) vibration handling available for the smoothest ride.

It's all about choice. The Fox Shock Edition as another great option to be used with our Game-Changing Suspension product line. This system is for the JK owner who wants the superior flex with great ride quality, but doesn't need the unprecedented off-roading articulation and pre-running capability of the 6Pak Shocks.

Note: MetalCloak Recommends You Have a Suspension Specialist Align Your Jeep Once MetalCloak Suspension is Installed.

: $3,249.00

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 7129

Suspension

2 or 4?*:


Jeep?*:


Backspacing*:



Features Specifications & Materials Installation Instructions


OEM Clevite and Typical Flex Joint is the Duroflex Joint

GO DUROFLEX OR GO HOME...

This is our JK Wrangler Game-Changer 4.5" bolt-on suspension system with the addition of
Fox Shocks and a Hi-Steer Kit.

OEM Clevite and Typical Flex Joint is the Duroflex Joint

WHAT'S IN THE KIT?

  • Fox Shocks provide great ride quality
  • True Dual Rate™ Coils give you stability and comfort that far exceeds single rate or progressive coils.
  • Duroflex Control Arms provide the best possible flex and ride quality on and off road. (Video)
  • Adjustable bump stops ensure you'll have the correct bump every time.
  • Fully Adjustable Solid Chromoly front Durotrak track bar increases ride stability
  • Fully Adjustable Solid Chromoly rear Durotrak track bar provides unprecedented up and down clearance
  • Hi-Steering Kit corrects steering geometry.

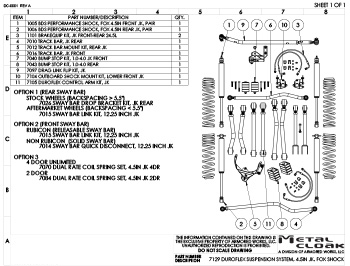

7129 Small Thumbnail

OEM Clevite and Typical Flex Joint is the Duroflex Joint

FOX 2.0" PERFORMANCE SERIES SHOCKS

  • CNC machined aluminum components are Type II hard anodized to a scratch and fade free finish.
  • Heavy Duty 5/8" chrome shafts are induction case hardened to over 55 Rocketwell C, virtually eliminating scratches caused by roost and debris.
  • Cold-forged, metal impacted 6061 T6 aluminum shock body dissipates heat three times faster than a conventional steel body shock. The 2.0 performance series shock runs as cool as a 2.5 diameter shock on the same application.
  • The internal floating piston design separates shock oil from the high pressure nitrogen charged gas chamber, eliminating oil aeration and cavitation, while providing a predictable ride - capable of handling the roughest conditions with fade-free performance.
7121 Fox Shock
OEM Clevite and Typical Flex Joint is the Duroflex Joint
FOX SHOCK SPECIFICATIONS...

Spec Length
Ext Comp Travel
Front Shocks 27.25" 16.65" 10.6"
Rear Shocks 28" 16.55" 11.45"

Note: Spec lengths use the end of the shock body.

OEM Clevite and Typical Flex Joint is the Duroflex Joint

WHAT'S IN THE KIT?

AT METALCLOAK WE TAKE THE CARE TO BUILD IT RIGHT...

Standard Tube FEnder Clearance

Control Arm Duroflex Joint Alignment...

At MetalCloak we take the care to build every product right.

Most manufacturers build their control arms misaligned from center. Why? It simply costs less to do so.

By not cutting any corners, our joints are Centered and Aligned reducing wear and improving performance.

It makes them easier to install, too!

Standard Tube FEnder Clearance
OEM Clevite and Typical Flex Joint is the Duroflex Joint
CONTROL ARM SPECIFICATIONS...

Front Control Arms Rear Control Arms
Castor Angle Lower Upper Lower Upper
Factory Control Arms Stock 22 5/8" 18 3/4" 19 3/4" 17 7/16"
MetalCloak 2.5 - 3.5" Lift 5 Degrees 23 1/16" 18 3/4" 20 7/16" 18 7/16"
MetalCloak 4.5 - 5.5" Lift 5 Degrees 23 9/16" 19 1/4" 20 15/16" 18 15/16"

Note: These Control Arm Specifications are Just Starting Points. ALL JEEPS ARE DIFFERENT. MetalCloak Recommends Seeing a Suspension Specialist for Correct Control Arm Lengths For YOUR Jeep.

JK Wrangler Lower Front
(SKU #7001)

  • CNC Formed
  • 3/16" Wall DOM Steel
  • 1.5" OD
  • Precision Locking Nut
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
Standard Tube FEnder Clearance
Standard Tube FEnder Clearance

JK Wrangler Upper Front
(SKU #7002)

  • CNC Machined
  • 3/16" Wall DOM Steel
  • 1.25" OD
  • 3/16" Steel Clevis
  • Precision Locking Nut
  • Gold Zinc Plated
  • Duroflex Joint

JK Wrangler Lower Rear
(SKU #7003)

  • CNC Machined
  • 3/16" Wall DOM Steel
  • 1.5" OD
  • Precision Locking Nut
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
  • Lengthened 5/8" for Best Axle Position

Standard Tube FEnder Clearance

Standard Tube FEnder Clearance

JK Wrangler Upper Rear
(SKU #7004)

  • CNC Formed
  • 3/16" Wall DOM Steel
  • 1.5" OD
  • Precision Locking Nut
  • Designed for Oversize Tire Clearance
  • Gold Zinc Plate
  • Duroflex Joint at Both Ends
  • Lengthened for Best Axle Position

OEM Clevite and Typical Flex Joint is the Duroflex Joint

68 DEGREES OF MISALIGNMENT. THAT MAKES IT FLEXY.

The Duroflex Joint (Patent Pending) is the key to getting the greatest flex in a
JK Wrangler bolt-on suspension kit. Period.

OEM Clevite and Typical Flex Joint is the Duroflex Joint

MetalCloak has taken the best features of the most widely used control arm joints and combined those features to create the Duroflex Joint, producing a Low-Maintenance, High-Misalignment (34°), Self-Centering, Rebuildable Joint with an OEM quality ride.


OEM Style Clevite Joint Typical Flex Joint Metalcloak Duroflex Joint
  • High Vibration Dampening
  • Self-Centering
  • Fused at Center Bushing
    (No Bearing Surface Wear)
  • High Transverse Flex
  • High Rotational Flex
  • Rebuildable
  • High Vibration Dampening
  • Self-Centering
  • Fused Center Bushing
    (No Bearing Surface Wear)
  • High Transverse Flex
  • High Rotational Flex
  • Rebuildable
OEM Clevite and Typical Flex Joint is the Duroflex Joint

DEGREES OF ARTICULATION...

MetalCloak's Duroflex Joint provides 28° more articulation and flex than typical control arms!

Duroflex Control Arms Articulation Low ARticulation Joints.
Learn More About the Upper Front Control Arms >>>
OEM Clevite and Typical Flex Joint is the Duroflex Joint

COIL SPRINGS 101-EVERYTHING YOU NEED TO KNOW ABOUT COIL SPRINGS

This short video covers what you need to know about the basics of Single Linear Rate Coil Springs and MetalCloak's True Dual Rate Coils. How Linear Coil Springs and MetalCloak's True Dual Rate Coils work and what to expect when using them.

Check Out the Video>>>

Coils 101 Video
OEM Clevite and Typical Flex Joint is the Duroflex Joint

WHY TRUE DUAL RATE ™ COILS?

MetalCloak JK Wrangler True Dual Rate™ Coils have the longest free length in the industry for
greater articulation without sacrificing the OEM ride quality.

Understanding Dual Rate Coils
JK Wrangler 4.5" True Dual Rate™ Coils, 2 Door Front JK Wrangler 4.5" True Dual Rate™ Coils, 4 Door Front
SS-2001 - JK Wrangler Front Dual Rate Coil Stock Clearance Jeep
JK Wrangler 4.5" True Dual Rate™ Coils, 2 Door Rear JK Wrangler 4.5" True Dual Rate™ Coils, 4 Door Rear
SS-2002 - JK Wrangler Dual Rate Rear Coils SS-2016

Learn More about the True Dual Rate™ Coils Specifications >>>

OEM Clevite and Typical Flex Joint is the Duroflex Joint

STOP THE GUESS WORK. BUMP IT UP!

Our Adjustable Bump-Stop removes the guess work on your Jeep and lets you build the
bump stop you need, when you need it.

Metalcloak Adjustable Bump Stop System...

  • Adjust from 1" - 4" Without Removing Coils
  • Perfect Height Regardless of Tire Size
  • Thermoset Rubber Dampens Impact
  • Additional Pads Available on Request

Get Correct Bump-Stop Height Every Time!

  • 4" - Use all 4 sections and longest hardware bolts for maximum bump-stop height
  • 3" - Use all 3 sections and long hardware bolts for maximum bump-stop height
  • 2" - Two sections and medium hardware bolts are used for medium bump-stop height
  • 1" - One section and the short hardware bolts are used for the minimum bump-stop height
JK Sectional Bump-Stops

Learn More about the Adjustable Bump Stops >>>

OEM Clevite and Typical Flex Joint is the Duroflex Joint

REAR ADJUSTABLE BUMP STOPS

Manufactured from trail-proven natural thermoset rubber, each puck is designed to work universally with your JK Wrangler.

Designed specifically for the JK Wrangler,
the system comes with 4 Rectangular Pucks,
allowing for easy adjustment between 1" - 4"

7043 Exploded View
Learn More about the Rear Adjustable Bump Stops >>>
OEM Clevite and Typical Flex Joint is the Duroflex Joint

NOT JUST ANY TRACK BAR BUSHING... MEET THE DUROTRAK™

Durotrak Bushing

The Durotrak Bushing (Pat Pend #14/622,350) is a NVH (noise, vibration, harshness) bushing made with a proprietary rubber compound unique to MetalCloak. The Durotraktwo part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.

OEM Clevite and Typical Flex Joint is the Duroflex Joint

SOLID CHROMOLY DUROTRAK FRONT TRACK BAR KEEPS YOU... WELL... ON TRACK.

Formed for ultimate Up-Travel & Down-Travel the JK Wrangler Front Track Bar
gives unprecedented strength, clearance, and improved ride stability.
JK Front Track Bar

Learn More about the JK Wrangler Front Track Bar >>>

OEM Clevite and Typical Flex Joint is the Duroflex Joint

JK WRANGLER DUROTRAK REAR TRACK BAR - A FIRST IN HI-CLEARANCE!

The Solid Chromoly track bar is uniquely designed to clear on up-travel as well as downtravel.
No other track bar is designed with up-travel in mind.
JK Wrangler Hi Clearance Rear Track Bar
OEM Clevite and Typical Flex Joint is the Duroflex Joint

BOLT ON BRACKET IS A KEY COMPONENT

The bolt-on relocation and clearance bracket provides an easy to install solution that keeps the track bar... on track.
JK Wrangler Track Bar Relocation Bracket
Learn More about the JK Wrangler Rear Track Bar >>>
OEM Clevite and Typical Flex Joint is the Duroflex Joint

HI STEER KIT: TUBULAR ALLOY STEEL DRAG LINK

At 4.5" is is important to correct the steering so we include the Hi-Steer kit standard with every 4.5" suspsension system we offer. It starts with the Drag Link -- High misalignment rod ends, double adjustable, tubular alloy steel, and clears aftermarket diff covers.

JK Wrangler Drag Link Diagram

OEM Clevite and Typical Flex Joint is the Duroflex Joint
DRAG LINK ROD ENDS
Boot Sealed - Keeps grease in and dirt out

Anti Flop Feature - Precision range of movement

Massive 1-Ton Rod Ends - Provides additional strength

JK Specific OE Bolt Taper - Secure mount

Dog Leg Tie Rod End Diagram

OEM Clevite and Typical Flex Joint is the Duroflex Joint
ANTI FLOP FEATURE

Anti Flop

This specially designed rod end has been engineered just for the JK Wrangler steering.

Full side to side range of motion ensures bind free steering when pushing the extremes of your Jeeps travel and articulation, while a limited "front to back" range of movement is built into the rod-end and eliminates the possibility of the offset to allow the tie-rod to "flop".

OEM Clevite and Typical Flex Joint is the Duroflex Joint
HI STEER KIT: TRACKBAR & STEERING STABILIZER RELOCATION BRACKET
As part of the Hi-Steer Kit, this bracket raises track bar to correct steering geometry in conjunction with the Drag-link flip hi-steer for use when lifting a Jeep JK over 3.5 inches, this bracket also incorporates a raised mount for the steering stabilizer for added protection!

The durable bracket is constructed of 7GA Laser Cut CAD formed steel and is finished in Gold Zinc plating for a molecular bond that protects against the elements; relocation bracket is 100% bolt on.

Flip Kit

OEM Clevite and Typical Flex Joint is the Duroflex Joint

JK WRANGLER REPLACEMENT BRAKE LINE, 24.5"

From the Teflon Inner Core, to the Stainless Steel Braid and Poly Safety Coat, the MetalCloak replacement Brake Lines are the best available on the market today.

Longer than typical brake lines of similar lift heights because of our additional clearance and travel.

JK Wrangler Hi Clearance Front Track Bar
Learn More about the JK Wrangler Replacement Brake Lines >>>OEM Clevite and Typical Flex Joint is the Duroflex Joint

JK OUTBOARD SHOCK MOUNT SPACER KIT

7104 With Shock Rotation

MetalCloak Jeep JK Outboard Front Lower Shock Mount Spacer Kit:

  • Engineered to move the lower shock mounts away from the Jeep frame rails increasing clearance for the shock body at the extremes of articulation.
  • Treated with Gold Zinc Chromate for the ultimate in defense against the elements.
  • Manufactured from laser cut 3/16" steel and CNC bent for superior strength and exact fitment.
  • All Grade 8 hardware provided

Bracket rotates shock eyelet; allows it to swing with the axle vs bind on the limited rubber material

OEM Clevite and Typical Flex Joint is the Duroflex Joint

TESTIMONIALS & BUZZ:


Check out what Jeepers everywhere are saying about our products on The Buzz Page.
