5.5 MORE INCHES? BOLT ON? REALLY? YEP.
The TJ Wrangler Game-Changing Long Travel Upgrade Kit adds 5.5" of travel using
bolt-on components to your existing TJ Long Arm.
|
|
Adding the 6Pak Long Travel Upgrade Kit gives you
- More Articulation (gain 5.5" of travel)
- More Down-Travel
- More Up-Travel
- More Stable Ride
- More Stable at Extreme Articulation
- Better Handling of Heavy Loads
- Great Handling On or Off Road
- The Easiest Upgrade to Your TJ, Ever
|
|
|
|
WHY ARE WE THE BEST? IT STARTS WITH THE SHOCKS
The design of the 6Pak didn't just revolutionize shocks, it changed the
suspension game forever.
|
|
|

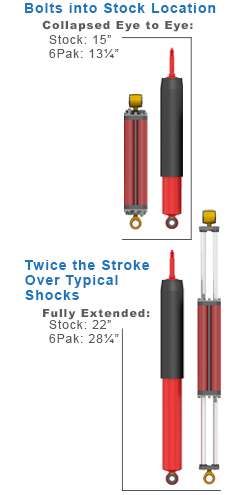

The MetalCloak 6Pak™ (US Patent 8,714,321) provides the
longest shock travel relative to a compressed length for any off-road shock ever built in history, period.
MetalCloak's
Long-Travel Shock Technology provides a game-changing platform featuring parallel shafts extending from a floating body, centralized by dual opposing reservoirs; this revolutionary feature allows for twice the usual stroke over typical industry shocks.
Now the problems of low-hanging shocks or limited travel because of your shock body are fully and completely eliminated.
The shock is no longer the limiting factor in your build.
|
|
|
|
Learn More about the 6Pak Shocks >>>
|
|
|
|
COIL SPRINGS 101-EVERYTHING YOU NEED TO KNOW ABOUT COIL SPRINGS
|
|
This short video covers what you need to know about the basics of Single Linear Rate Coil Springs and MetalCloak's True Dual Rate Coils. How Linear Coil Springs and MetalCloak's True Dual Rate Coils work and what to expect when using them.
Check Out the Video>>>
|
|
|
|
|
WHAT ARE TRUE DUAL RATE ™ COILS?
MetalCloak TJ/LJ Wrangler True Dual Rate™ Coils have some of the longest free lengths in the industry for greater articulation without sacrificing the OEM ride quality.
|
|
|
Learn More about the True Dual Rate™ Coil Specifications >>>
|
|
|
|
TRUE DUAL RATE ™ COILS SPECIFICATIONS:
|
|
TJ/LJ Wrangler True Dual Rate™ Coils kit includes:
• 2 Hi-Tensile Chrome Silicon Steel Springs
Spring Specifications
Free Length: 25"
Solid Height: 9 1/4"
Coating: Black Powder Coating
• (2) Hi-Tensile Chrome Silicone Steel Alloy Coil Springs
|
|
TJ/LJ Wrangler True Dual Rate™ Coils kit includes:
• 2 Hi-Tensile Chrome Silicon Steel Springs
Spring Specifications
Free Length: 20 5/8"
Solid Height: 6 3/4"
Coating: Black Powder Coating
• (2) Hi-Tensile Chrome Silicon Steel Alloy Coil Springs
|
|
|
|
|
SHOCK MOUNTS
|
|
SHOCK MOUNT KIT, TJ-LJ UPPER FRONT
Bolt on laser cut, CNC formed, 3/16 steel brackets allow the 6Pak shock to bolt directly into factory shock locations; finished in Gold Zinc Chromate for the utmost in defense against the elements.
|
|
|
|
SHOCK MOUNT KIT, TJ-LJ LOWER REAR
- For use with or without 6Pak Shocks
- Laser cut
- CNC formed
- 3/16 steel
- Allows 6Pak shock to bolt directly onto factory or aftermarket axles
- 3 times the strength of OE brackets
- Raw finished for easy weld on applications
- Requires Welding
|
|
|
BAR PIN ELIMINATOR:
|
|
MetalCloak TJ Bar Pin Eliminator Kit, Upper Rear
• Specially Designed to Minimize Parts
• CAD Designed CNC Formed
• Grade 8 Hardware
• Retains Original Mounting Position
• Side Movement Prevents Binding of Shafts
• Allows for 1/2" of Additional Down Travel
This simple and effective design, eliminates unnecessary parts and is ideal for use with the Metalcloak 6Pak shocks.
|
|
|
|
|
OWNERS GUIDE
|
|
|
<<< Click the image to the left for the 6 Pak Owners Guide
|
|
|
TESTIMONIALS & BUZZ:
Check out what Jeepers everywhere are saying about our products on The Buzz Page.
|
|
|
